Az-500 NSG and ASG

Application security groups

Application security groups enable you to configure network security as a natural extension of an application's structure, allowing you to group virtual machines and define network security policies based on those groups. You can reuse your security policy at scale without manual maintenance of explicit IP addresses. The platform handles the complexity of explicit IP addresses and multiple rule sets, allowing you to focus on your business logic. To better understand application security groups, consider the following example:

In the previous picture, NIC1 and NIC2 are members of the AsgWeb application security group. NIC3 is a member of the AsgLogic application security group. NIC4 is a member of the AsgDb application security group. Though each network interface in this example is a member of only one network security group, a network interface can be a member of multiple application security groups, up to the Azure limits. None of the network interfaces have an associated network security group. NSG1 is associated to both subnets and contains the following rules


DEMO

We will create a Vnet with 3 subnets and host 3 VM's in each subnet. Then we host a default site on VM1 and access it using its private IP inside VM2 and VM3. We then create an ASG and attach it to VM3. Then we configure VM1 to allow traffic only from networks that are associated with the ASG(VM3 in our case)

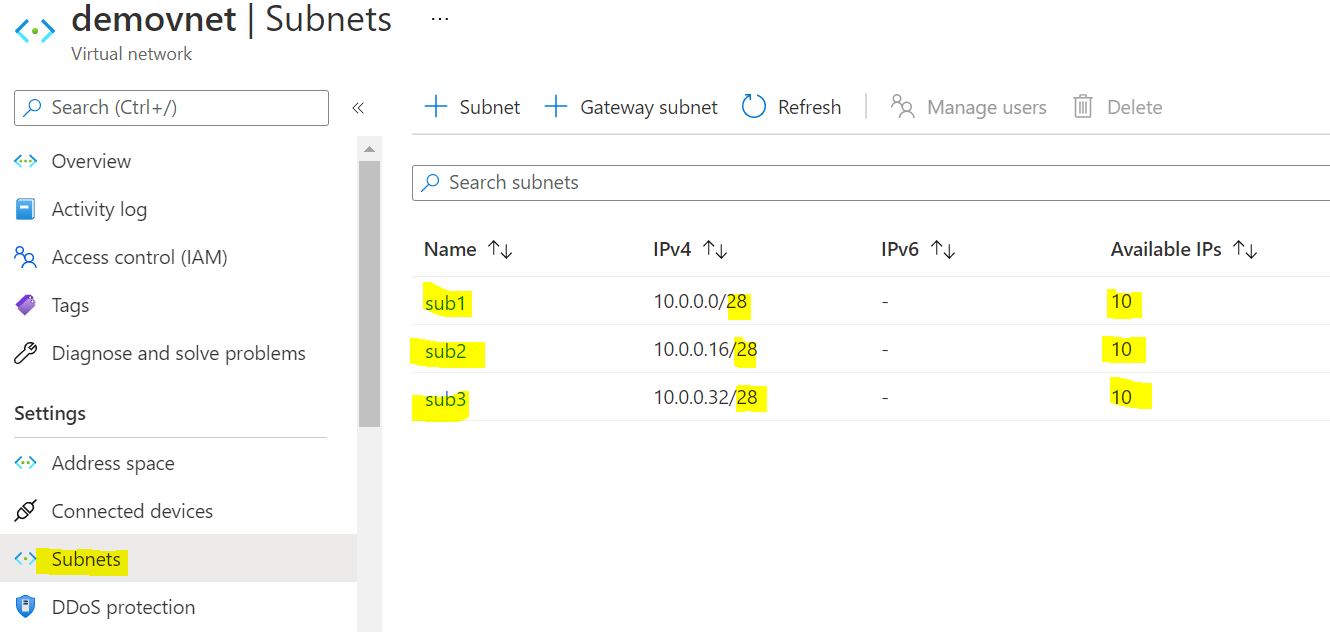

STEP 1: Create a VNET and 3 Subnets

The total address space is 256(/24 CIDR). Create 3 subnets in the address space

Step 2

Create 3 virtual machine.

  1. demovm1 -> sub1

  2. demovm2 -> sub2

  3. demovm3 -> sub3

I have allowed rdp in all 3 VM's for this demo.

Step 3

RDP into the VM1 and create a default html page. Enable IIS using server manager.

Save it as "index.html" to the path shown below. This path will be only available only after we enable IIS inside the VM.

This webpage will now be available when we open localhost inside VM1. Similarly this page can be accessed inside VM2 and VM3 using VM1 private IP. Go to VM1 and copy its private ip and open it inside VM2 and VM3. The default port is 80 so we will be able to access the website by pasting the private IP alone.

Step 4: Create an ASG and associate it with VM3

Step 5: Create a network rule in VM1 to disallow http traffic from all subnets

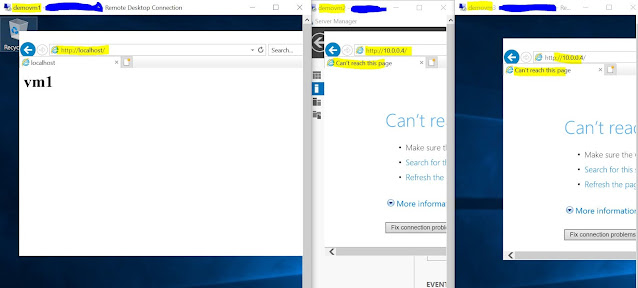

Now we can see that we are unable to access the webpage inside both the VM's.

Step 6:

This rule allows traffic from resources connected to the ASG to VM1. Note that the priority is lower than the deny rule.

Application security groups have the following constraints:

• There are limits to the number of application security groups you can have in a subscription, as well as other limits related to application security groups. For details, see Azure limits.
• In the Azure portal, you can specify only one application security group as the source and destination in a security rule. In the REST API (including PowerShell/Azure CLI), you can specify multiple application security groups in the source or destination.
• All network interfaces assigned to an application security group have to exist in the same virtual network that the first network interface assigned to the application security group is in. For example, if the first network interface assigned to an application security group named AsgWeb is in the virtual network named VNet1, then all subsequent network interfaces assigned to ASGWeb must exist in VNet1. You cannot add network interfaces from different virtual networks to the same application security group.
• If you specify an application security group as the source and destination in a security rule, the network interfaces in both application security groups must exist in the same virtual network. For example, if AsgLogic contained network interfaces from VNet1, and AsgDb contained network interfaces from VNet2, you could not assign AsgLogic as the source and AsgDb as the destination in a rule. All network interfaces for both the source and destination application security groups need to exist in the same virtual network.
